SiloCapCal - Silo Capacity on Windows Pc

Developed By: Darren Frost (FrostPro)

License: Free

Rating: 4,5/5 - 26 votes

Last Updated: December 24, 2023

Download on Windows PC

Compatible with Windows 10/11 PC & Laptop

App Details

Version 1.05
Size 1.4 MB
Release Date March 02, 14
Category Tools Apps

App Permissions:
Allows applications to open network sockets. [see more (6)]

What's New:
* Free-space now included above material repose apex. Based on 10% of silo diameter* Additional help screen showing top of silo variables [see more]

Description from Developer:
A fast and efficient tool for calculating the volume and actual holding capacity of a cylindrical silo either of a flat bottom design or having a truncated conical discharge hopper... [read more]

App preview ([see all 8 screenshots])

App preview

About this app

On this page you can download SiloCapCal - Silo Capacity and install on Windows PC. SiloCapCal - Silo Capacity is free Tools app, developed by Darren Frost (FrostPro). Latest version of SiloCapCal - Silo Capacity is 1.05, was released on 2014-03-02 (updated on 2023-12-24). Estimated number of the downloads is more than 5,000. Overall rating of SiloCapCal - Silo Capacity is 4,5. Generally most of the top apps on Android Store have rating of 4+. This app had been rated by 26 users, 18 users had rated it 5*, 1 users had rated it 1*.

How to install SiloCapCal - Silo Capacity on Windows?

Instruction on how to install SiloCapCal - Silo Capacity on Windows 10 Windows 11 PC & Laptop

In this post, I am going to show you how to install SiloCapCal - Silo Capacity on Windows PC by using Android App Player such as BlueStacks, LDPlayer, Nox, KOPlayer, ...

Before you start, you will need to download the APK/XAPK installer file, you can find download button on top of this page. Save it to easy-to-find location.

[Note] You can also download older versions of this app on bottom of this page.

Below you will find a detailed step-by-step guide, but I want to give you a fast overview of how it works. All you need is an emulator that will emulate an Android device on your Windows PC and then you can install applications and use it - you see you're playing it on Android, but this runs not on a smartphone or tablet, it runs on a PC.

If this doesn't work on your PC, or you cannot install, comment here and we will help you!

Step By Step Guide To Install SiloCapCal - Silo Capacity using BlueStacks

  1. Download and Install BlueStacks at: https://www.bluestacks.com. The installation procedure is quite simple. After successful installation, open the Bluestacks emulator. It may take some time to load the Bluestacks app initially. Once it is opened, you should be able to see the Home screen of Bluestacks.
  2. Open the APK/XAPK file: Double-click the APK/XAPK file to launch BlueStacks and install the application. If your APK/XAPK file doesn't automatically open BlueStacks, right-click on it and select Open with... Browse to the BlueStacks. You can also drag-and-drop the APK/XAPK file onto the BlueStacks home screen
  3. Once installed, click "SiloCapCal - Silo Capacity" icon on the home screen to start using, it'll work like a charm :D

[Note 1] For better performance and compatibility, choose BlueStacks 5 Nougat 64-bit read more

[Note 2] about Bluetooth: At the moment, support for Bluetooth is not available on BlueStacks. Hence, apps that require control of Bluetooth may not work on BlueStacks.

How to install SiloCapCal - Silo Capacity on Windows PC using NoxPlayer

  1. Download & Install NoxPlayer at: https://www.bignox.com. The installation is easy to carry out.
  2. Drag the APK/XAPK file to the NoxPlayer interface and drop it to install
  3. The installation process will take place quickly. After successful installation, you can find "SiloCapCal - Silo Capacity" on the home screen of NoxPlayer, just click to open it.

Discussion

(*) is required

Download older versions

Other versions available: 1.05.

Download SiloCapCal - Silo Capacity 1.05 on Windows PC – 1.4 MB

A fast and efficient tool for calculating the volume and actual holding capacity of a cylindrical silo either of a flat bottom design or having a truncated conical discharge hopper with circular outlet.

This tool was developed by a consulting engineer and is intended to help a wide audience including bulk materials handling engineers, project engineers, factory operators, students and of course silo, tank and hopper manufacturers.

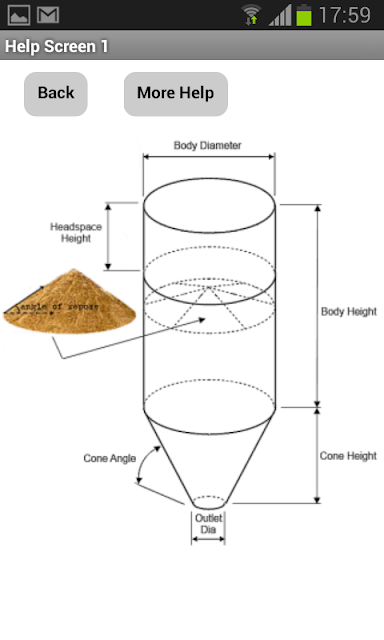

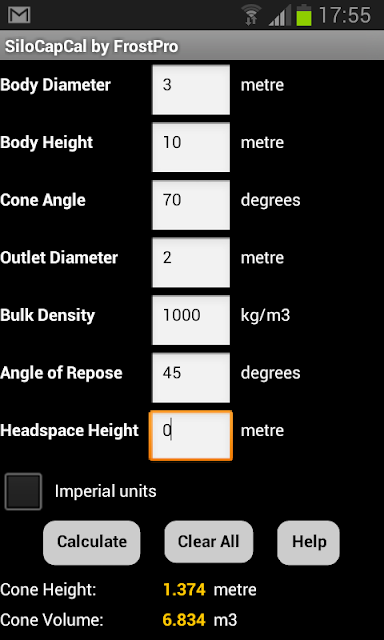

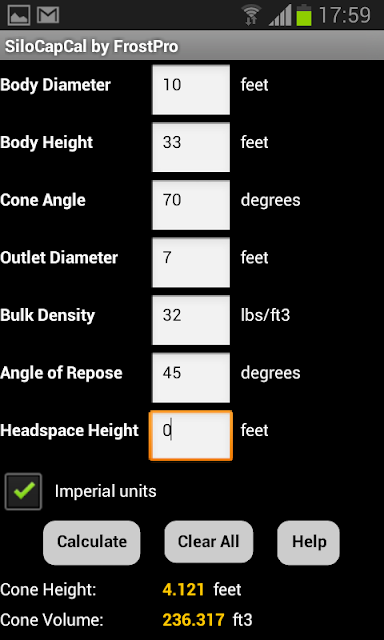

* For volume calculations the app requires the silo diameter, height, outlet diameter (if flat bottomed silo) and cone angle with outlet diameter (for conical outlet silo). All non-dependent fields can be left empty or set with 0 values.

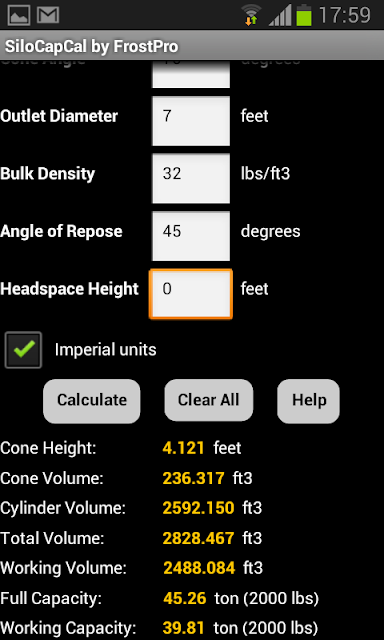

* Storage capacity capability can also be calculated by entering the bulk handling properties of the material which will fill the silo and used for storage calculations. The user is required to input known data such as bulk density and the angle of repose for the particular material.

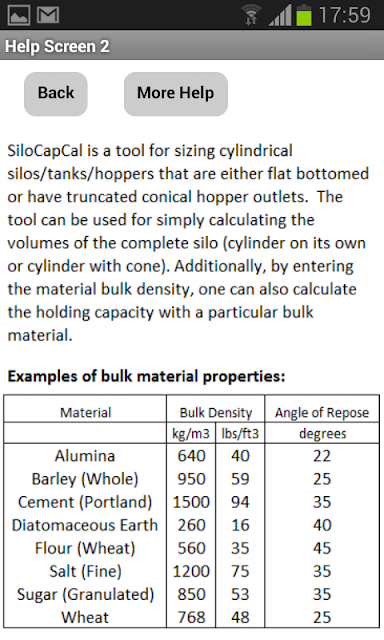

Bulk material properties are widely available, but for quick reference some commonly used materials are listed in the help section.

It should be noted that the angle of repose of a material is based on the material filling the silo from the top via a central inlet, in most cases for powders this can be set at 45 degrees and for free flowing granular materials 25 degrees should be suitable in most cases. If you are not sure of the angle of repose for the material then set it high, as this will make sure the silo holds what is required.

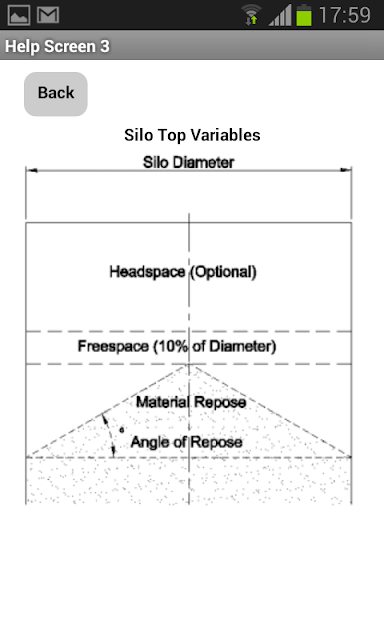

A useful feature for project engineers and silo designers is the ability to set top headspace height (empty void of cylinder above material peak) so that a section of the silo can be left out of the working capacity calculation for times when explosion protection devices and sensors might need fitting in the top of the cylinder, or purely to ensure the silo will hold the desired storage capacity even if the bulk density of the material varies slightly. The material bulk density very often varies depending on product grade, moisture content and other environmental conditions.

It should be noted that if using this tool to calculate dead loads for civil engineering purpose then the weight of the silo itself must be added to the storage capacity plus the bulk density of the material is normally increased by 25% for settled materials so having a higher packed density.
* Free-space now included above material repose apex. Based on 10% of silo diameter
* Additional help screen showing top of silo variables
