Arduino IP Camera WI-FI 18 CHs BT on Windows Pc

WI-FI IP camera and control with 18 Bluetooth channels in the same application.

It works with WI-FI without internet access!

*** Use your old cell phone as a surveillance camera - Low cost and simpler. ***

Mode1:
Works with Router wi-fi - No need to configure router;
See step by step on the blog: http://sergioarduino.blogspot.com/p/arduino-ip-camera-wifi18chsbt.html

Mode2:
Hotspot, works without router!
See step by step on the blog: http://sergioarduino.blogspot.com/p/arduino-ip-camera-wi-fi-18-chs-bt-modo2.html


 In open field without obstacles ~ 100 meters and for indoor environment with obstacles 30 meters, depending on the transmission power of the wi-fi signal.
*** Use your old cell phone as a surveillance camera - Low cost and simpler. ***



- This App controls up to 18 devices IP Camera Switches ON / OFF, connected to the Arduino Uno, using up to 18 relays connected to the 110V / 220V network.

- Residential automation: Monitor and visualize (camera) the activation of devices (switches ON / OFF) from a distance.

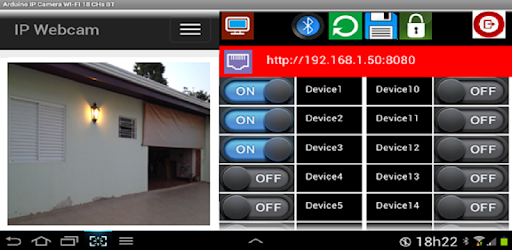

Application presentation: Arduino IP Camera WI-FI 18 CHs BT


Monitor Button:

View the camera image of the phone in real time;


Bluetooth button:

- Select the Bluetooth device from a list;


Refresh button:

- Updates the status of Buttons - Keys ON / OFF;


- Padlock button:

Opens padlock, Device Edit Mode, total of 18 editable devices, and cell phone IP number;

Close padlock, lock edit mode;


-Black Button:

Edit the IP camera number of the mobile phone and save it in the database and the App data;


- Save button:

Saves device names and mobile camera IP number in App database;


- Exit button:

Quit the App;



ON / OFF Buttons or Keys:


- Total of 18 Buttons - Keys ON / OFF Relay Mode 110V / 220V;
- All Buttons with their Editable names;
- 02 Buttons are ON / OFF Pulse Relay Mode 110V / 220V, Timer 2000ms, used in Doors with Electrical Lock.


*** Free Arduino Code! ***

See also on the blog:

1- Complete Arduino code program for the App .: Arduino IP Camera WI-FI 18 CHs BT;
2- Connection scheme with photo gallery;
3- Description of operation and installations.
4- How to properly set up and configure the App;
5- List of Materials.

How it works:

- Start the App. Arduino IP Camera WI-FI 18 CHs BT, at this time will be asked to connect the Bluetooth of your mobile phone;

- Then after this action press the button to choose a Bluetooth device from a list;

- Note that at this time the bluetooth stops blinking and is steadily lit, representing that Bluetooth is connected;

Note: See how to make the necessary connections, such as power, bluetooth, leds or relays, and others;

- All buttons and IP are editable;

- At this moment we can already test the ON / OFF drives, even without the assembly of the leds or relays, only with the Bluetooth module connected;

- We can connect Leds in the outputs of the Arduino to represent all 18 channels of drives;

- We must connect relays at the outputs of the Arduino to make the ON / OFF drives in a 110 / 220V electrical network;

- Through these relays we can control (on / off) lamps, abatjours, luminaires, fans, electric door locks, motors, contactors, electric oven, TV, sound, toaster, household appliances, etc .;


Key-button statuses are instantly displayed on your Android smartphone;

Home Automation: Monitor and view camera images all device activation (ON / OFF key switches) from a distance.

In this project we will use the camera of an "old" cell phone and the system of control and visualization of the images of the camera is by the App. Arduino IP Camera WI-FI 18 CHs BT, installed in another cell phone.

Then the first "old" cell phone will be used only as a surveillance camera and the second cell phone will be used to control the ON / OFF devices and Real-time image monitoring.
