OTG UART Terminal-232 1.2 on Windows Pc

Developed By: Apps Gempro

License: Free

Rating: 4,5/5 - 4 votes

Last Updated: December 27, 2023

Download on Windows PC

Compatible with Windows 10/11 PC & Laptop

App Details

Version 1.2.00
Size 173 KB
Release Date August 10, 13
Category Communication Apps

What's New:
V1.2:1.The input word will directly send to UART Port.2.You can press Volume Down to open Soft keyboard.3.Add Control Key function:Volume Down + 'A' ~ 'Z' =... [see more]

Description from Developer:
This is a testing tool that makes mobile phone or Tablet a portable UART/RS-232.
With it, people don’t carry bulky PC or buy expensive UART testing equipment.

If there’s a USB OTG... [read more]

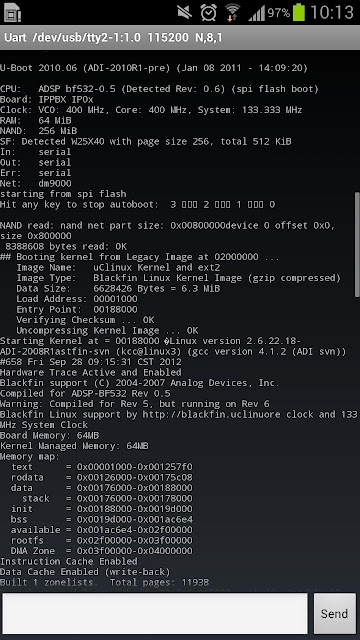

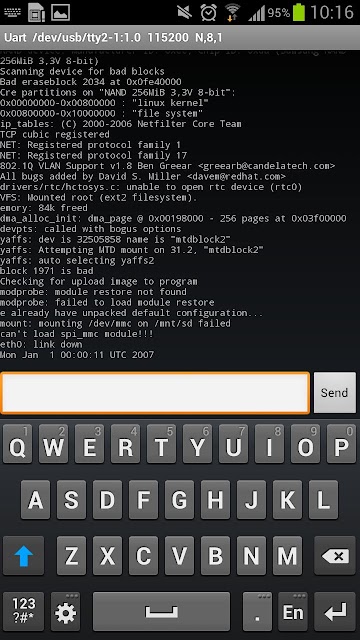

App preview ([see all 4 screenshots])

App preview

About this app

On this page you can download OTG UART Terminal-232 1.2 and install on Windows PC. OTG UART Terminal-232 1.2 is free Communication app, developed by Apps Gempro. Latest version of OTG UART Terminal-232 1.2 is 1.2.00, was released on 2013-08-10 (updated on 2023-12-27). Estimated number of the downloads is more than 100. Overall rating of OTG UART Terminal-232 1.2 is 4,5. Generally most of the top apps on Android Store have rating of 4+. This app had been rated by 4 users, 3 users had rated it 5*, 1 users had rated it 1*.

How to install OTG UART Terminal-232 1.2 on Windows?

Instruction on how to install OTG UART Terminal-232 1.2 on Windows 10 Windows 11 PC & Laptop

In this post, I am going to show you how to install OTG UART Terminal-232 1.2 on Windows PC by using Android App Player such as BlueStacks, LDPlayer, Nox, KOPlayer, ...

Before you start, you will need to download the APK/XAPK installer file, you can find download button on top of this page. Save it to easy-to-find location.

[Note] You can also download older versions of this app on bottom of this page.

Below you will find a detailed step-by-step guide, but I want to give you a fast overview of how it works. All you need is an emulator that will emulate an Android device on your Windows PC and then you can install applications and use it - you see you're playing it on Android, but this runs not on a smartphone or tablet, it runs on a PC.

If this doesn't work on your PC, or you cannot install, comment here and we will help you!

Step By Step Guide To Install OTG UART Terminal-232 1.2 using BlueStacks

  1. Download and Install BlueStacks at: https://www.bluestacks.com. The installation procedure is quite simple. After successful installation, open the Bluestacks emulator. It may take some time to load the Bluestacks app initially. Once it is opened, you should be able to see the Home screen of Bluestacks.
  2. Open the APK/XAPK file: Double-click the APK/XAPK file to launch BlueStacks and install the application. If your APK/XAPK file doesn't automatically open BlueStacks, right-click on it and select Open with... Browse to the BlueStacks. You can also drag-and-drop the APK/XAPK file onto the BlueStacks home screen
  3. Once installed, click "OTG UART Terminal-232 1.2" icon on the home screen to start using, it'll work like a charm :D

[Note 1] For better performance and compatibility, choose BlueStacks 5 Nougat 64-bit read more

[Note 2] about Bluetooth: At the moment, support for Bluetooth is not available on BlueStacks. Hence, apps that require control of Bluetooth may not work on BlueStacks.

How to install OTG UART Terminal-232 1.2 on Windows PC using NoxPlayer

  1. Download & Install NoxPlayer at: https://www.bignox.com. The installation is easy to carry out.
  2. Drag the APK/XAPK file to the NoxPlayer interface and drop it to install
  3. The installation process will take place quickly. After successful installation, you can find "OTG UART Terminal-232 1.2" on the home screen of NoxPlayer, just click to open it.

Discussion

(*) is required

Download older versions

Other versions available: 1.2.00.

Download OTG UART Terminal-232 1.2 1.2.00 on Windows PC – 173 KB

This is a testing tool that makes mobile phone or Tablet a portable UART/RS-232.
With it, people don’t carry bulky PC or buy expensive UART testing equipment.

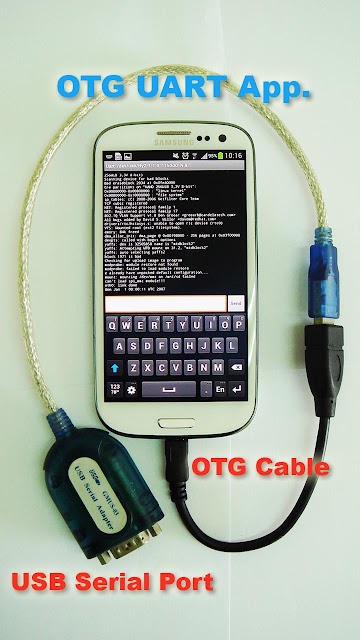

If there’s a USB OTG function in your mobile or Tablet, you just need to download the APP, prepare USB OTG Cable and USB Serial Port. That will make your mobile or Tablet testing tool of UART/RS-232.

**The FDTI Chip doesn't support yet, might be support in the futer.

Function:
Baud Rate: 1200 ~ 115200
Parity Bit: EVEN, ODD, NONE
Display Mode: HEX or Normal
Store Data function.

System Requirements:
Over Android 2.3 version
A USB OTG interface in mobile or Tablet .
USB OTG Cable.
The USB Serial Port Adapter.

For the sake of various standards of Android mobile phone and Tablet, please check your mobile as below to make sure that app can work well:
1. Please check if mobile support the function of USB OTG.
2. Though some mobiles have OTG function, they still need the permission of ROOT while using UART.
3. Though some mobiles have OTG function, they don't supply power in the USB port. Hence, you must prepare power or USB HUB.
4. The mount point of UART adapter in some mobiles are not absolutely the name of “/dev/usb”, you can use file manager to check the mount point and inform us the name of it also.
5. Anyway, you should see the UART adapter in your mobile device, and it may be in the "/dev/usb"
If there's any problem, please feel free to contact us soon.
V1.2:
1.The input word will directly send to UART Port.
2.You can press Volume Down to open Soft keyboard.
3.Add Control Key function:
Volume Down + 'A' ~ 'Z' = Ctrl+A (01) ~ Ctrl+Z(26).
Volume Down + ' ' = Code 00
Volume Down + 'Del' = Escape (27).
4.Add 10 set of Macro:
Sending method: Volume Down + '0' ~ '9' = Macro 0 ~ Macro 9.
5. If you wants to send by HEX you can define it in Macro.
6. Add Drive Directory which enables users to set for search.
PS:Doesn't support FDTI Chip yet.
