G-NetLog on Windows Pc

Developed By: GyokovSolutions

License: Free

Rating: 4,0/5 - 3 votes

Last Updated: December 27, 2023

Download on Windows PC

Compatible with Windows 10/11 PC & Laptop

App Details

Version 1.1
Size 280.7 KB
Release Date January 27, 23
Category Tools Apps

App Permissions:
Allows an app to access approximate location. [see more (13)]

What's New:
-added MENU button to open app menu [see more]

Description from Developer:
G-NetLog is a fieldtest/netmonitor application for UMTS/GSM/LTE/CDMA/EVDO network. This is similar to G-NetTrack Pro, but without map support and is suitable for devices without Go... [read more]

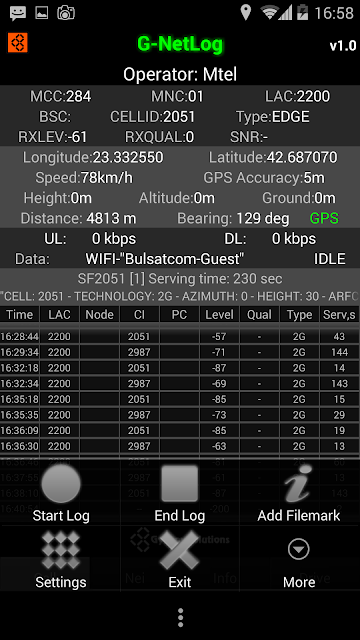

App preview ([see all 19 screenshots])

App preview

About this app

On this page you can download G-NetLog and install on Windows PC. G-NetLog is free Tools app, developed by GyokovSolutions. Latest version of G-NetLog is 1.1, was released on 2023-01-27 (updated on 2023-12-27). Estimated number of the downloads is more than 100. Overall rating of G-NetLog is 4,0. Generally most of the top apps on Android Store have rating of 4+. This app had been rated by 3 users, 2 users had rated it 5*, 1 users had rated it 1*.

How to install G-NetLog on Windows?

Instruction on how to install G-NetLog on Windows 10 Windows 11 PC & Laptop

In this post, I am going to show you how to install G-NetLog on Windows PC by using Android App Player such as BlueStacks, LDPlayer, Nox, KOPlayer, ...

Before you start, you will need to download the APK/XAPK installer file, you can find download button on top of this page. Save it to easy-to-find location.

[Note] You can also download older versions of this app on bottom of this page.

Below you will find a detailed step-by-step guide, but I want to give you a fast overview of how it works. All you need is an emulator that will emulate an Android device on your Windows PC and then you can install applications and use it - you see you're playing it on Android, but this runs not on a smartphone or tablet, it runs on a PC.

If this doesn't work on your PC, or you cannot install, comment here and we will help you!

Step By Step Guide To Install G-NetLog using BlueStacks

  1. Download and Install BlueStacks at: https://www.bluestacks.com. The installation procedure is quite simple. After successful installation, open the Bluestacks emulator. It may take some time to load the Bluestacks app initially. Once it is opened, you should be able to see the Home screen of Bluestacks.
  2. Open the APK/XAPK file: Double-click the APK/XAPK file to launch BlueStacks and install the application. If your APK/XAPK file doesn't automatically open BlueStacks, right-click on it and select Open with... Browse to the BlueStacks. You can also drag-and-drop the APK/XAPK file onto the BlueStacks home screen
  3. Once installed, click "G-NetLog" icon on the home screen to start using, it'll work like a charm :D

[Note 1] For better performance and compatibility, choose BlueStacks 5 Nougat 64-bit read more

[Note 2] about Bluetooth: At the moment, support for Bluetooth is not available on BlueStacks. Hence, apps that require control of Bluetooth may not work on BlueStacks.

How to install G-NetLog on Windows PC using NoxPlayer

  1. Download & Install NoxPlayer at: https://www.bignox.com. The installation is easy to carry out.
  2. Drag the APK/XAPK file to the NoxPlayer interface and drop it to install
  3. The installation process will take place quickly. After successful installation, you can find "G-NetLog" on the home screen of NoxPlayer, just click to open it.

Discussion

(*) is required

Download older versions

Other versions available: 1.1.

Download G-NetLog 1.1 on Windows PC – 280.7 KB

G-NetLog is a fieldtest/netmonitor application for UMTS/GSM/LTE/CDMA/EVDO network. This is similar to G-NetTrack Pro, but without map support and is suitable for devices without Google Play services.

G-NetLog manual:
http://www.gyokovsolutions.com/manuals/gnetlog_manual.php

The measurements are:

Serving Cell:
LEVEL (4G-RSRP, 3G-RSCP, 2G-RXLEV)
QUAL (4G-RSRQ, 3G-ECNO, 2G-RXQUAL)
SNR (4G only)
MCC, MNC, CELLID, eNodeBID/RNCID, LAC/TAC

Neighbor Cells:
LEVEL (4G-RSRP, 3G-RSCP, 2G-RXLEV)
CELL (4G-PCI, 3G-PSC, 2G-CELLID)

Other:
downlink/uplink bitrates, speed, technology, phone state, cell layer

Measurements are written in text and kml logs. They are located in folder G-NetLog_Logs.

-Text Log – tab delimited multipurpose format – useful for MS Excel and database applications. Can be analyzed with G-NetLook Pro
-KML log – for Google Earth visualization


Auto Indoor Mode
-used in tunnels and places with bad GPS coverage
-when GPS accuracy fails below a threshold the measurements are buffered and when the accuracy is good the measurement are plotted on a straight line between the point of GPS fix loss and recovery

Automatic test sequences

VOICE CALL - sequence of voice calls with pause
-Statistics - Call Start, Call Block, Call Drop, Call End
DATA - sequence of ping, upload and download
-Statistics - DL/UL bitrate, AVG PING, MIN PING, MAX PING, STDEV PING, PING LOSS
SMS - sequence of SMS
-Statistics – SMS delivery


CELL Data import from text cellfile

Cellfile – text file in tab delimited format. It should be in folder G-NetLog_Logs/cellfile.
Here is a sample cellfile:
http://www.gyokovsolutions.com/downloads/G-NetTrack/cellfile.txt

Cell information in cellfile:
-Geographical – longitude, latitude
-Network – CELLNAME, MCC, MNC, CELLID, LAC/TAC, eNodeBID, PCI
-Site specific – azimuth, height, tilt
-added MENU button to open app menu
Allows an app to access approximate location.
Allows an app to access precise location.
Allows read only access to phone state, including the phone number of the device, current cellular network information, the status of any ongoing calls, and a list of any PhoneAccounts registered on the device.
Allows using PowerManager WakeLocks to keep processor from sleeping or screen from dimming.
Allows an application to write to external storage.
Allows applications to open network sockets.
Allows applications to access information about networks.
Allows applications to access information about Wi-Fi networks.
Allows an application to initiate a phone call without going through the Dialer user interface for the user to confirm the call.
Allows an application to receive the ACTION_BOOT_COMPLETED that is broadcast after the system finishes booting.
Allows an application to send SMS messages.
Allows an application to receive SMS messages.
Allows an application to read from external storage.
