Smart iLED PRO on Windows Pc

Smart LED Pro is a new RGB LED control APP,Support our company professional RGB LED Control box, Support 1600 million color optional, music/mic sync mode, on/off,flash,loop,fade,class,music/mic sync effect etc..
Manual：
1. Download App. "Smart iLED" from the Google Play store.
2. Open the App, it will automatically turn on the Bluetooth on your device.
3. Select “Search new device”.
4. Select the device “LX-LED”. It may ask for a pin. Enter 1234.
5. App will open and connect.
6. Select color or operating mode to control the lights.

Operation Instruction:
* COLOR SELECTOR WHEEL
TOUCH ANY COLOR ON THE COLOR WHEEL TO SELECT A SOLID COLOR OR YOU CAN TOUCH THE R/G/B SILDER TO GET A SOLID SOLOR

* FADE
TOUCH TO ACTIVATE A SMOOTH BLENDED CHANGE ONE COLOR OF THE RAINBOW OR FROM ONE COLOR OF THE RAINBOW TO THE NEXT AND PRESET THE FADING SPEED
Touch the "Fade" button to enter pattern setting for 7 colors selection & repeat times & delay times.
For example, if you select 3 color from the list, then it will fade the preset times between the selected 3 colors only, and delay the preset times for every cycle. You can still change the fading speed from the fade bar.

* FLASH
TOUCH TO ADD A STROBING EFFECT TO YOUR LIGHT AND PRESET THE FLASHING SPEED
Touch the "Flash" button to enter pattern setting for repeat times & delay times.
For example, if you preset repeat=3 & delay=2, then it will flash 3 times each time and delay 2 seconds. You can still change the flashing speed from the flash bar.

* LOOP
TOUCH TO MAKE COLORS CHANGE ABSOLUTELY FROM ONE COLOR OF THE RAINBOW TO THE NEXT AND PRESET THE FADING SPEED
Touch the "Loop" button to enter pattern setting for 15 colors selection & repeat times & delay times.
For example, if you select 5 color from the list, then it will flash the preset times between the selected 5 colors only, and delay the preset times for every cycle. You can still change the looping speed from the loop bar.

* ON/OFF
TURN LIGHTS ON AND OFF
* MUSIC/LED
TOUCH TO SWITCH MUSIC SYNC MODE OR COLOR CONTROL MODE
* MIC
TOUCH TO SWITCH MIC SYNC MODE OR MUSIC SYNC MODE
Note #1:
When in Music Sync Mode, please use the Media Player on your device to play music. You can use the Bluetooth to connect your device with an external Bluetooth speaker at the same time.
When in Mic Sync Mode, it will use the microphone on your device and flash with the surrounding sound.

Note #2:
When in Fade/Music&Mic Sync Mode, you can choose a solid color or allow the lights to scroll through a series of colors. The RGB values in these modes will determine if the light colors will remain solid or scroll through multi colors. Please refer to the following chart for color setting.

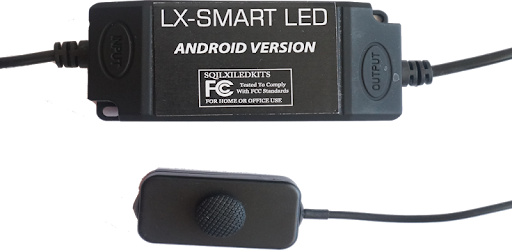

Note #3 : Optional Wired Remote
An optional wired remote is included with your Android kits. To install the wired remote, connect the wire harness to the open connection on the main harness. Run the optional wired remote button to a convenient location and mount it firmly to your bike. You can now control your LED kit in the absence of your bluetooth device.

Wired Remote operation Instruction
Press and hold on/off button to turn your lighting system on/off.
When the power is on, quickly press and release the on/off button to change through 15 solid color options. At any point, users can take control of their device with their iLED APP. The iLED app will override the manual wired remote control.

Note #4:
Operating range for this and other Bluetooth devices is approximately 100 feet. If the operator leaves the range of operation and then comes back into range, it may take up to 1 minute for the device to automatically reconnect to the light kit. In a case where the smart phone does not reconnect, simply press “Back” button and go back to select “Connect the last device”.

Thank You For Choosing Our Product!
